PyTorch Core Mechanics: Deep Dive into forward() and backward()

A comprehensive guide for students and instructors explaining the internal workings, data flow, dynamic graph construction, and automatic differentiation engine in PyTorch.

---

PyTorch resources

• Basics of PyTorch
• Basic for ANN in PyTorch

💡Recall on backprop

• 💡Backprop

Minimal example in PyTorch

'''
Python script to build a neural network using PyTorch for educational purposes.

This script demonstrates the basics of defining a neural network, training it on a simple dataset, and evaluating its performance.

Requirements:
- Python 3.x
- PyTorch
- NumPy

Usage:
1. Install Python 3.x from https://www.python.org/downloads/
2. Install PyTorch by following instructions at https://pytorch.org/get-started/locally/
2. Create a virtual environment (optional but recommended):
   python -m venv venv_pytorch
   source venv_pytorch/bin/activate  # On Windows use `venv_pytorch\Scripts\activate`
   pip install -r requirements.txt

Usage:
    python 03_nn.py

Author: soumya banerjee

Acknowledgements:
- Based on PyTorch tutorials and documentation.
- https://www.coursera.org/learn/pytorch-fundamentals/ungradedLab/chHVv/modeling-non-linear-patterns-with-activation-functions


'''

# Load libraries
import torch # Main PyTorch library
import torch.nn as nn # For neural network modules
import torch.optim as optim # For optimization algorithms
import numpy as np # For numerical operations


# distances for delivery
distances = torch.tensor([  [1.0] ,
                          [2.0] ,
                          [3.0] ,
                          [4.0] ,
                          [5.0] ,
                          [6.0] ,
                          [7.0]
                          ],
                          dtype = torch.float32
                        )

# delivery times
times = torch.tensor([  [1.5] ,
                       [1.7] ,
                       [3.2] ,
                       [3.8] ,
                       [5.1] ,
                       [5.3] ,
                       [7.2]
                       ],
                       dtype = torch.float32
                     )

print(" Building a simple neural network model to predict delivery time based on distance \n ")

# define the neural network model
model = nn.Sequential(
    nn.Linear(1,1) # One input feature (distance), one output feature (time)
)

# define the loss function and optimizer
loss_function = nn.MSELoss() # Mean Squared Error loss
optimizer = optim.SGD(
    model.parameters(), # Stochastic Gradient Descent optimizer
    lr = 0.01          # Learning rate
)

print("Starting training...\n")

# train the model
num_epochs = 1000
for epoch in range(num_epochs): # Training loop
    optimizer.zero_grad()      # Zero the gradients
    outputs = model(distances) # Forward pass
    loss = loss_function(outputs, times) # Compute loss
    loss.backward()            # Backward pass
    optimizer.step()           # Update weights
    #print("Epoch", epoch + 1, "\n")
    #print("Loss:", loss.item(), "\n")

# plot loss over epochs
import matplotlib.pyplot as plt
#plt.figure()
#plt.plot( range(num_epochs),
#         [loss_function()])

print("\n Make predictions using a simple model \n")
# plot the prediction of the model with the actual data
predicted = model(distances).detach().cpu() # Get predictions
# what is detach() doing here?
# It detaches the tensor from the computation graph, so that no gradients are tracked for it.
# detach() returns a new tensor that shares the same storage but is detached from PyTorch's autograd graph — so operations on it won't be tracked for gradients.
# Use it before converting to NumPy or lists to avoid autograd errors.

try:
    predicted = model(distances).detach().cpu().numpy() # Get predictions as NumPy array
    distances_plot = distances.cpu().numpy()
    times_plot = times.cpu().numpy()
except:
    predicted = model(distances).detach().cpu().tolist() # Fallback to list if NumPy conversion fails
    distances_plot = distances.cpu().tolist()
    times_plot = times.cpu().tolist()

plt.figure()
plt.plot(distances_plot,
         times_plot,
         'ro',
         label = 'Original data'
         )
plt.plot(distances_plot,
         predicted,
         label = 'Model prediction'
        )
plt.xlabel("Distance")
plt.ylabel("Delivery time")
plt.title("Simple model Predictions vs Original Data")
plt.legend()
plt.show()

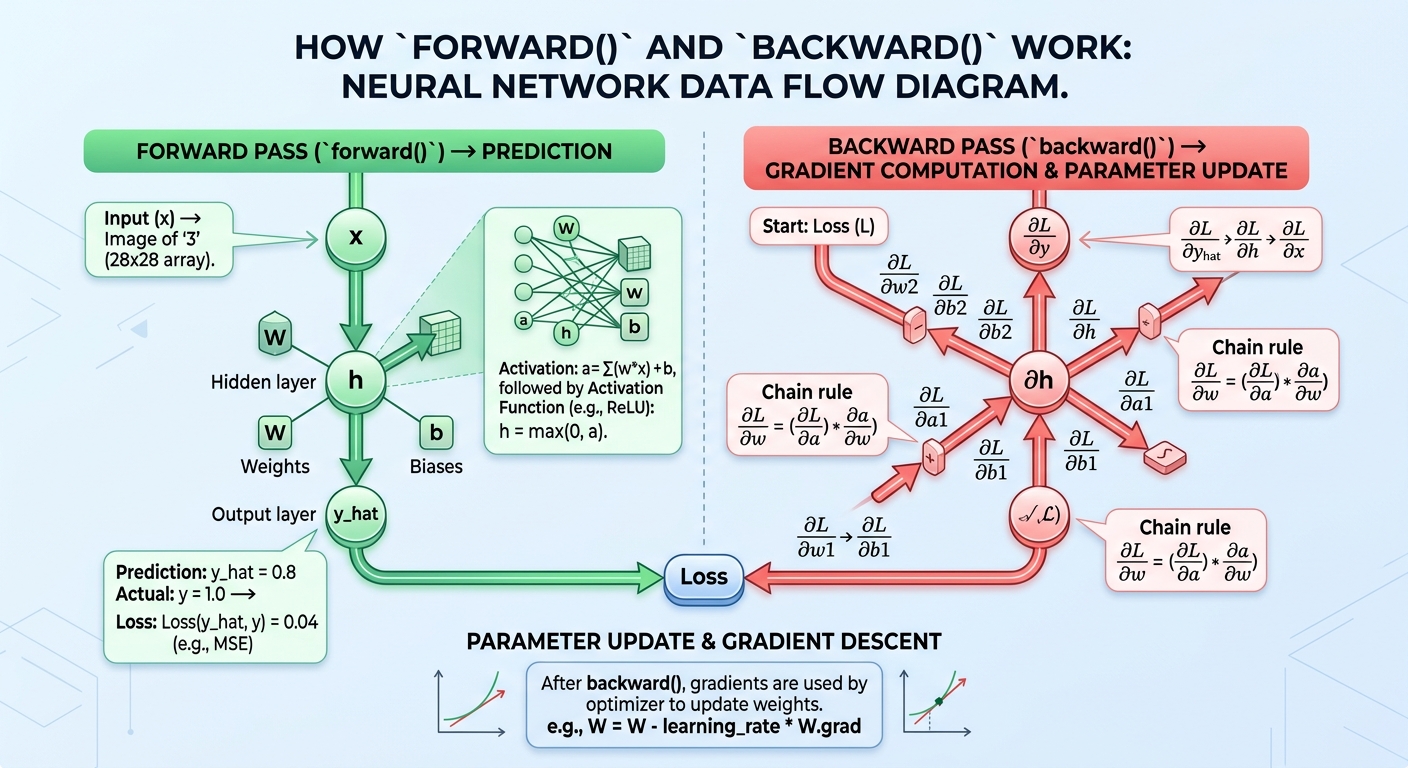

1. Executive Summary & Core Philosophy

In PyTorch, model training relies on two foundational, complementary operations:

1. The Forward Pass (forward()): Transforms input tensors through layered mathematical operations to yield predictions and calculates a scalar loss value. Concurrently, PyTorch dynamically constructs a Directed Acyclic Graph (DAG) tracking all performed operations.
2. The Backward Pass (backward()): Traverses the dynamically created computational graph in reverse (from output loss to input parameters), computing exact gradients via reverse-mode automatic differentiation (the Chain Rule) and populating tensor .grad attributes.

       FORWARD PASS (Data & Graph Building)
  Input (x)  ──────►  Layers / Modules  ──────►  Prediction (ŷ) ──────► Loss (L)
                                                                            │
                                                                            │ loss.backward()
       BACKWARD PASS (Gradient Backpropagation)                             ▼
  ∂L/∂W       ◄──────  Chain Rule  ◄──────────  Grad Engine  ◄──────────────┘

---

2. The Forward Pass (forward())

2.1 What Happens During forward()?

When input data is passed through a PyTorch nn.Module, the model computes output values layer by layer. Beyond simple mathematical evaluation, the forward pass performs key infrastructure setup:

• Tensor Computation: Executes matrix multiplications, convolutions, bias additions, and non-linear activations (e.g., ReLU, Softmax).
• Dynamic Computational Graph Construction: For every operation involving tensors with requires_grad=True, PyTorch appends a node to an execution graph.
• State & Activation Caching: Saves intermediate values (such as pre-activation hidden states) required later for derivative calculations during the backward pass.

2.2 Calling Syntax: model(x) vs model.forward(x)

Important Teaching Note: Always invoke modules using model(x) rather than calling model.forward(x) directly.

# PREFERRED (Executes PyTorch module hooks and state tracking):
output = model(inputs)

# AVOID (Bypasses PyTorch internal hooks, profiling, and pre/post-forward handles):
output = model.forward(inputs)

When calling model(inputs), Python calls nn.Module.__call__(), which handles:

1. Executing registered forward_pre_hooks.
2. Invoking your custom forward() implementation.
3. Executing registered forward_hooks.
4. Registering target output dependencies for backward computation.

---

3. The Dynamic Computational Graph (DAG)

Unlike static graph frameworks, PyTorch uses Define-by-Run dynamic computational graphs. The graph is built on-the-fly during the forward pass and destroyed after the backward pass.

3.1 Anatomy of Graph Nodes

Every tensor created by an operation carries a reference to its creator function via grad_fn:

• Leaf Tensors: User-created tensors or trainable parameters ($W$, $b$) created directly. They have grad_fn = None and requires_grad = True.
• Intermediate Tensors: Tensors produced by operations (e.g., $h = Wx + b$). They store a grad_fn point matching the operation (e.g., <AddBackward0>, <MmBackward0>).

  [ W (Leaf) ] ──┐
                 ├──► [ mm() ] ──► [ Tensor h ] ──► [ Relu() ] ──► [ Tensor a ] ──► Loss (L)
  [ x (Input) ] ─┘   (MmBackward)                  (ReluBackward)

---

4. The Backward Pass (backward())

4.1 Triggering Automatic Differentiation (Autograd)

Calling loss.backward() initiates reverse-mode automatic differentiation starting from the scalar loss node $L$.

4.2 Application of the Calculus Chain Rule

The autograd engine traverses the graph backward from output to inputs. At each node, it computes local partial derivatives and multiplies them by incoming gradient signals from upstream nodes.

Mathematical Formulation:

For a simple multi-layer sequence $h = Wx + b$, $a = \sigma(h)$, and $L = ext{Loss}(a, y)$:

1. Upstream Gradient at Output: \(rac{\partial L}{\partial a}\)

2. Gradient Through Activation $\sigma(h)$: \(rac{\partial L}{\partial h} = rac{\partial L}{\partial a} \cdot \sigma'(h)\)

3. Gradient With Respect to Weights $W$: \(rac{\partial L}{\partial W} = rac{\partial L}{\partial h} \cdot x^T\)

4. Gradient With Respect to Biases $b$: \(rac{\partial L}{\partial b} = rac{\partial L}{\partial h}\)

4.3 Gradient Storage & Accumulation

Unlike standard assignments, PyTorch accumulates (adds) gradients into .grad:

\[ext{tensor.grad} \leftarrow ext{tensor.grad} + ext{new\_gradient}\]

Because gradients accumulate, you must explicitly clear them before starting a new optimization iteration using optimizer.zero_grad().

---

5. Summary Table: Forward vs. Backward

| Feature / Aspect | Forward Pass (forward()) | Backward Pass (backward()) | | :— | :— | :— | | Primary Goal | Generate predictions ($\hat{y}$) & calculate Loss ($L$) | Calculate gradients ($rac{\partial L}{\partial W}$) for parameters | | Direction of Data | Input $ ightarrow$ Layers $ ightarrow$ Prediction $ ightarrow$ Loss | Loss $ ightarrow$ Layers $ ightarrow$ Parameters | | Graph Action | Builds the Dynamic DAG | Traverses and Frees the Dynamic DAG | | Primary PyTorch Trigger | model(x) / criterion(y_hat, y) | loss.backward() | | Underlying Engine | Python module execution & C++ Catenation | C++ torch::autograd Engine | | Memory Impact | Allocates tensor activations in VRAM/RAM | Frees intermediate activation graph memory | | Parameter Impact | Parameters remain unchanged | Gradients populate param.grad (Parameters not updated yet) |

---

6. The Complete Training Step Workflow

A standard training loop brings forward(), backward(), and parameter updating together in a precise 4-step cadence:

import torch
import torch.nn as nn
import torch.optim as optim

# Sample Model Definition
class SimpleMLP(nn.Module):
    def __init__(self, input_dim, hidden_dim, output_dim):
        super(SimpleMLP, self).__init__()
        self.fc1 = nn.Linear(input_dim, hidden_dim)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(hidden_dim, output_dim)

    def forward(self, x):
        h = self.fc1(x)
        a = self.relu(h)
        out = self.fc2(a)
        return out

# Instantiate Model, Loss Function, and Optimizer
model = SimpleMLP(input_dim=10, hidden_dim=32, output_dim=1)
criterion = nn.MSELoss()
optimizer = optim.SGD(model.parameters(), lr=0.01)

# Dummy Input and Target
inputs = torch.randn(8, 10)
targets = torch.randn(8, 1)

# --- SINGLE TRAINING ITERATION ---

# STEP 1: Clear previous step gradients
# Sets all param.grad values to None/0 to prevent unwanted gradient accumulation
optimizer.zero_grad()

# STEP 2: Forward Pass
# Evaluates network layers, caches intermediate states, constructs dynamic graph
predictions = model(inputs)
loss = criterion(predictions, targets)

# STEP 3: Backward Pass
# Traverses graph from loss back to parameters, computes derivatives via Chain Rule
loss.backward()

# STEP 4: Optimizer Step (Parameter Update)
# Adjusts parameters using stored gradients: W = W - lr * W.grad
optimizer.step()

---

7. Common Pitfalls & Instructor FAQ

Q1: Why do we call optimizer.zero_grad() before loss.backward()?

Answer: PyTorch accumulates gradients into .grad by default. If zero_grad() is omitted, gradients from the current batch will add to gradients from previous batches, leading to incorrect gradient magnitudes and divergent training.

Q2: What happens if I call loss.backward() twice?

Answer: PyTorch frees the computational graph immediately after backward() executes to conserve memory. Calling backward() a second time will raise a RuntimeError: Trying to backward through the graph a second time... unless loss.backward(retain_graph=True) was specified.

Q3: Why does loss.backward() not update model weights?

Answer: Decoupling gradient calculation from parameter updates provides modularity. loss.backward() strictly computes derivatives and stores them in param.grad. The optimizer.step() function uses these stored gradients according to a specific optimization algorithm (SGD, Adam, AdamW, etc.).
