need a map and need to know where we are
without a map you have a chicken and egg problem
without a map you do not know where you are
if you do not where you are, you cannot construct a map
the solution is to simultaneously create a map and localize
use odometry
map
self-localisation
path planning
Odometry is the use of motion sensor data (such as wheel encoders or IMUs) to estimate how an object’s position and orientation change over time, usually relative to a starting point
This involves the use of odometry to self localise and to build maps.
This is due to using the diameter D which is in physical units (e.g cm, meters etc) to get the distance travelled in the x, y coordinates of the world.

exploration of environment
position estimation using robot pose
sensor values interpret (LIDAR, sonar, vision, etc.)
integration of sensor values into map (based on distance from robot and pose estimation of robot)
robot starts from origin (charging point)
fires off laser and use trigonometry to figure out location of object (based on returns from laser)
reactive explorer
what happens to table? robot can go underneath. the choice is with you

divide into grids
binary (occupied/not occupied) within each cell

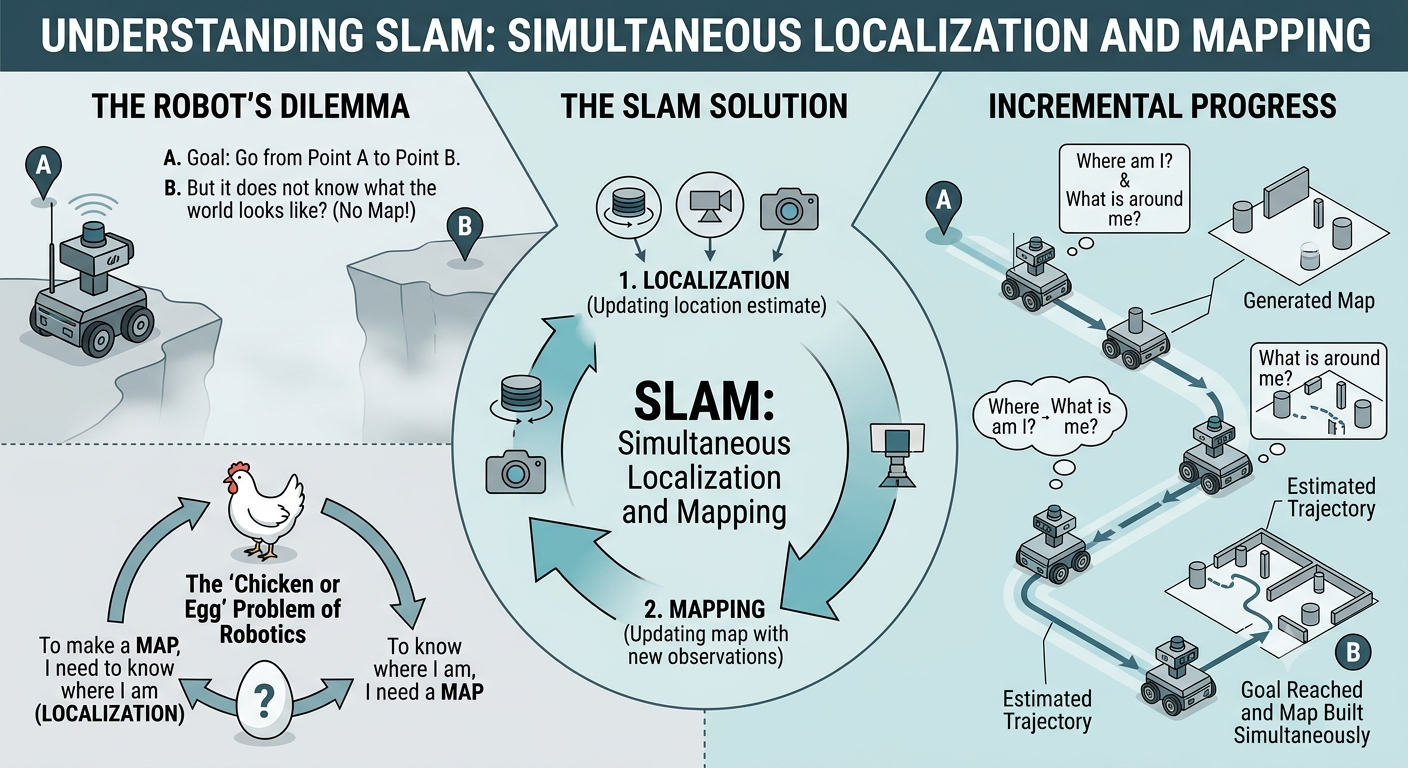

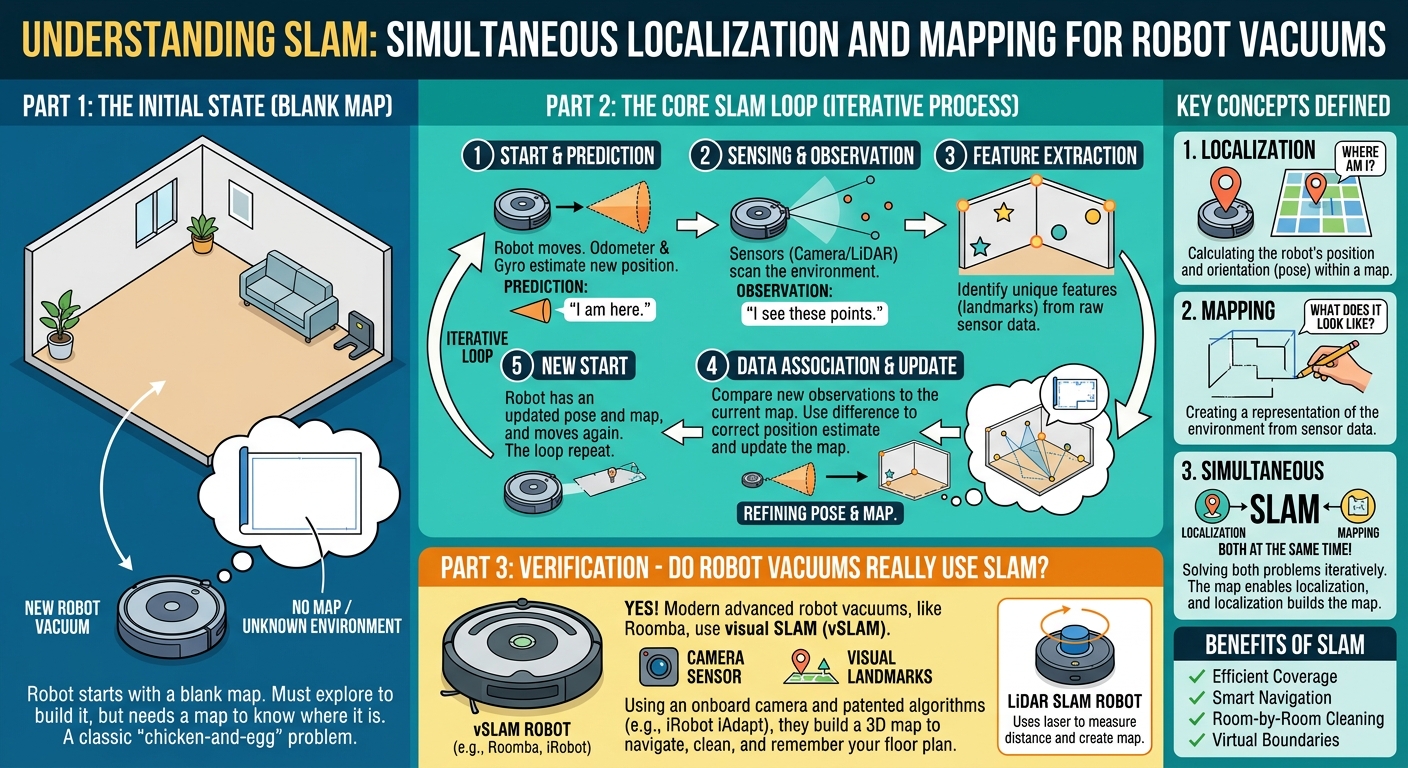

Simultaneous Localization and Mapping (SLAM)
which came first: the egg or the chicken?
robot wants to go from point A to point B: but it does not know what the world looks like?
so it needs a map
but what if there is no map?
try to build a map when there is no map!


wheels -> odometry
if humanoid robot then joints
IMU: inertial measurement unit
odometry: key to robotics platforms
odometry assumption: robot should know where is origin (0,0,0)
for vacuum cleaner, it is charging point. can self localize from there
all sensor input goes to build occupancy map
use the equations to build an occupancy grid for the environment
all sensor measurements (such as LIDAR) feed into forming map
more detailed notes here

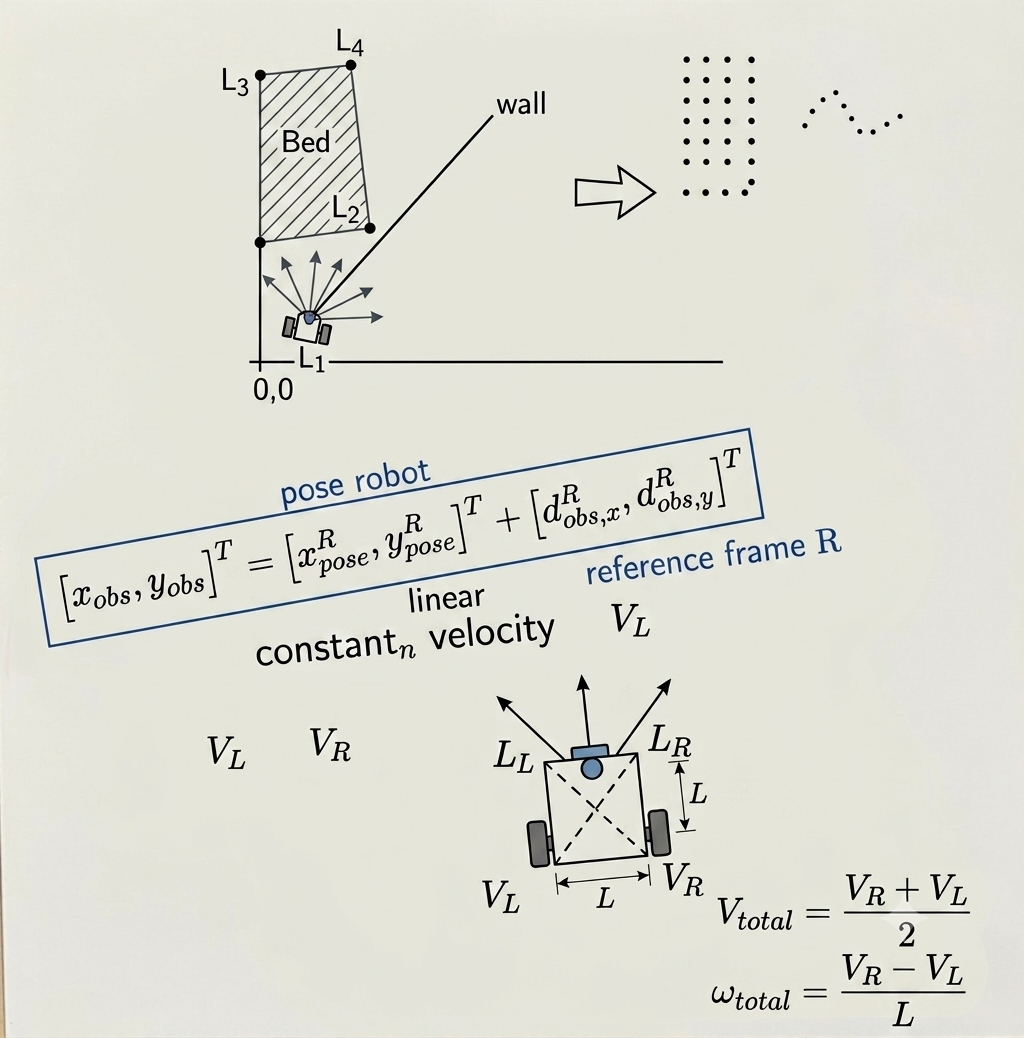

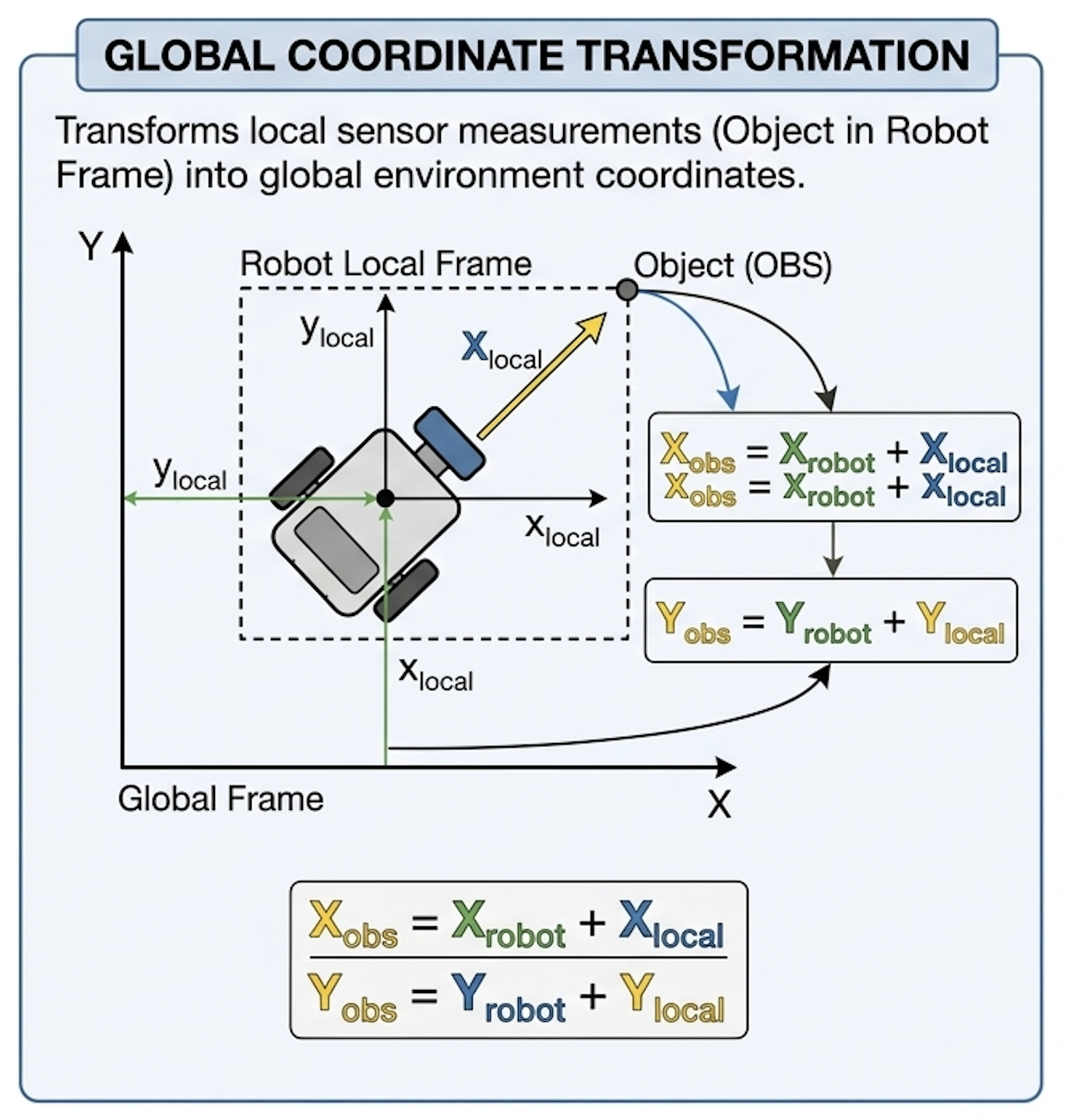

global coordinate transformation equations

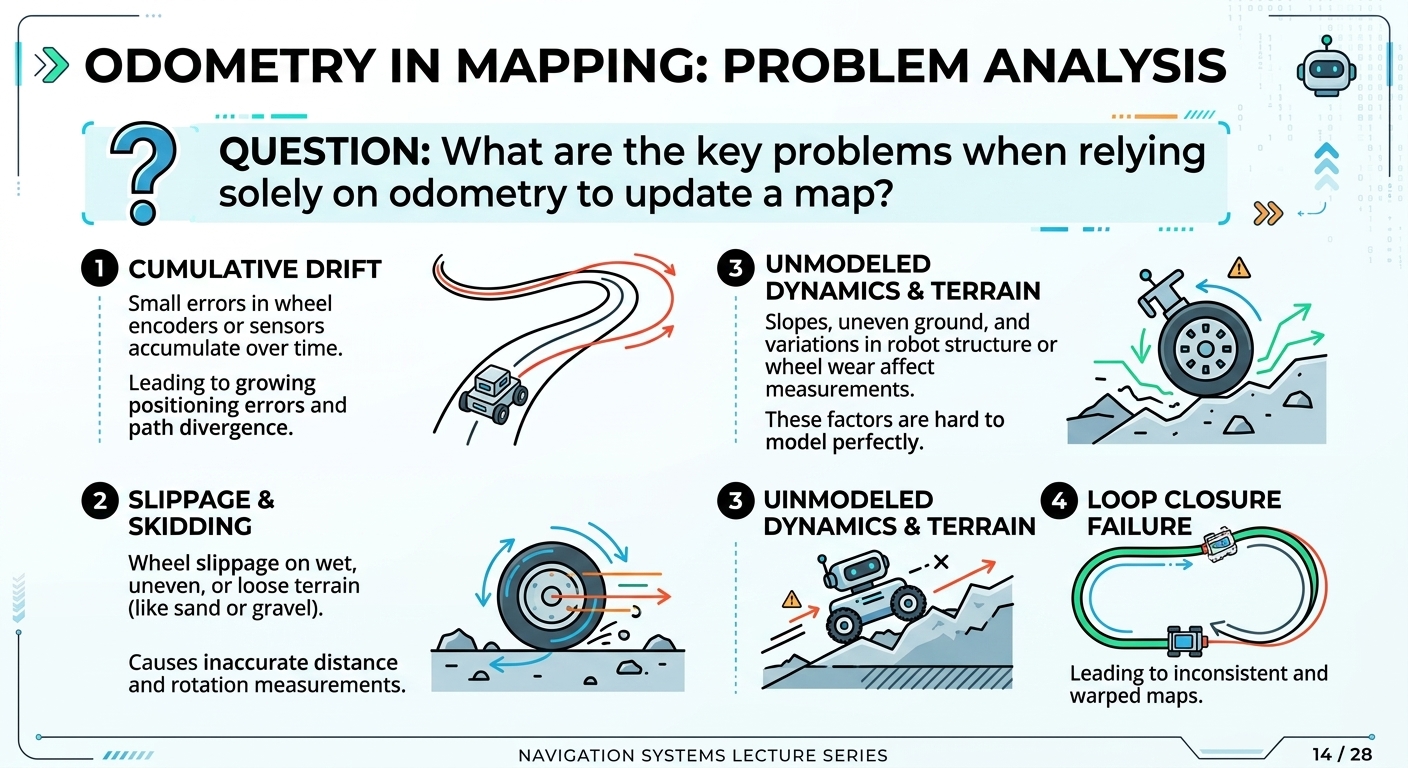

🤔 ❓ what is the problem?
relying too much on odomtery
can be slippage, etc
error adds up; bigger the building, bigger the problem
self localizing due to odometry can be problematic
every rotation adds up
map can be erroneous

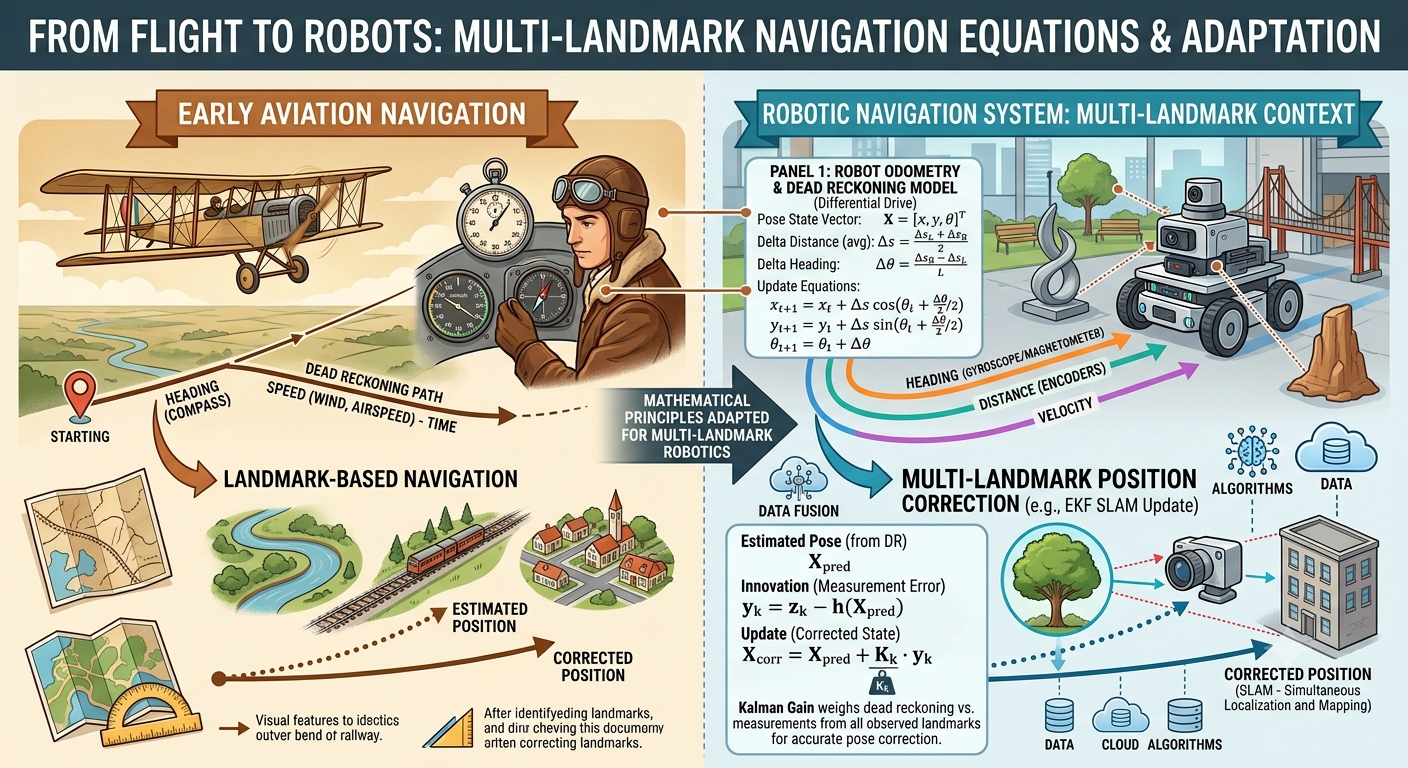

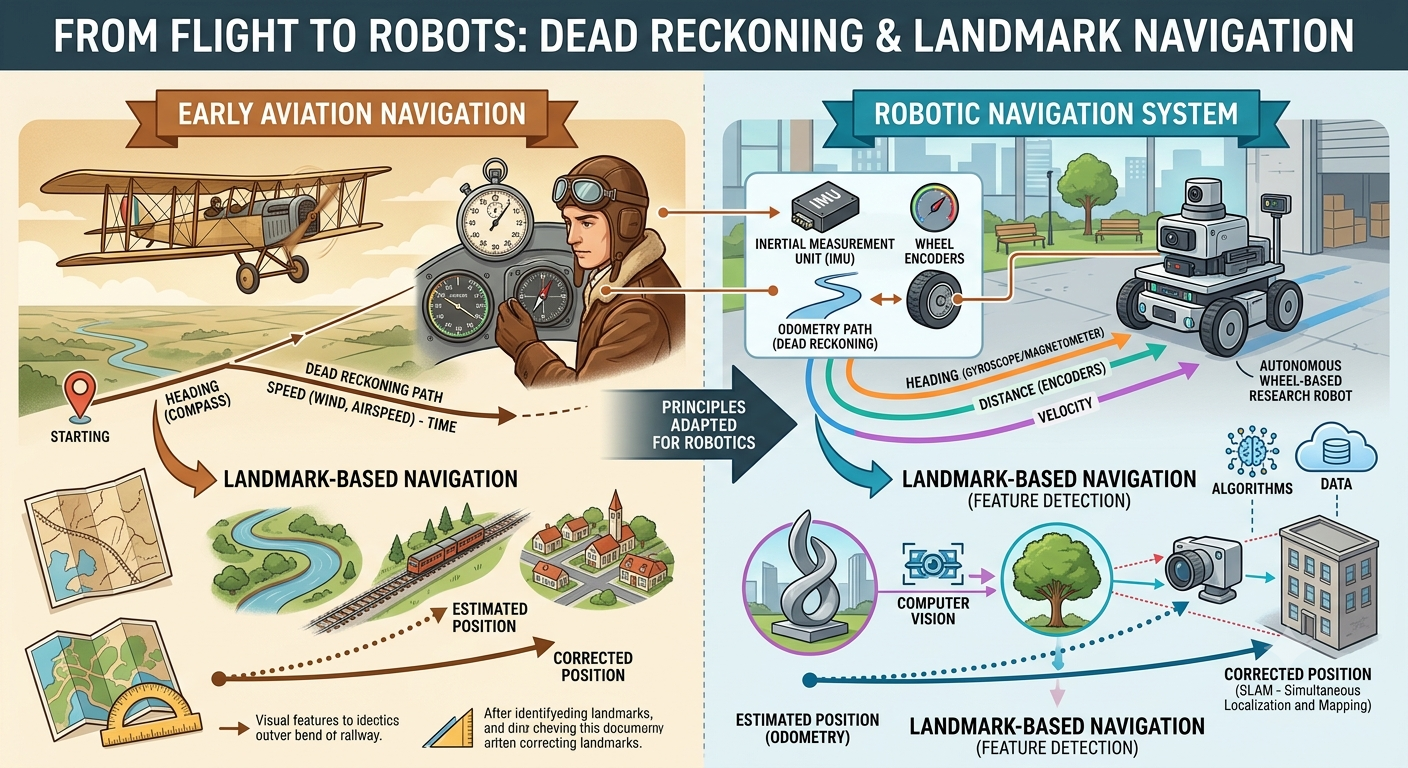

let us go back to early days of flight
dead reckoning
v = d/t has a clock, how much distance travelled in a time period
look for a particular direction on compass
and then look for a landmark
LondonEye is a landmark for flights

Concept 🧩 🚀 the greater the distance between landmarks, the greater the drift

Concept 🧩 🚀landmark should be static
that is why when you buy a vacuum robot and it is mapping: move chairs 🪑
vacuum robot setup guides routinely recommend tucking in or removing dining chairs, picking up floor clutter, and opening all doors before running an initial mapping cycle.
distinct landmarks and unique locations (QR codes, colours)
database of landmarks with locations
weights landmark more than odometry and then update location
equations

🤔 ❓build occupancy map for this
🤔 ❓ which sensor would you use? (LIDAR, ultrasound, vision)
would vision work? might detect some features
problem with laser: can shine through, narrow beam
glass may refract
with glass room, use ultrasound
ultrasound would work best
⚠️ design issues in industry: vacuum robot in glass offices, but office may have glass
combinations of sensors
landmarks may look similar
building a robotic tour guide (in Legoland)
landmarks locations known and do not move

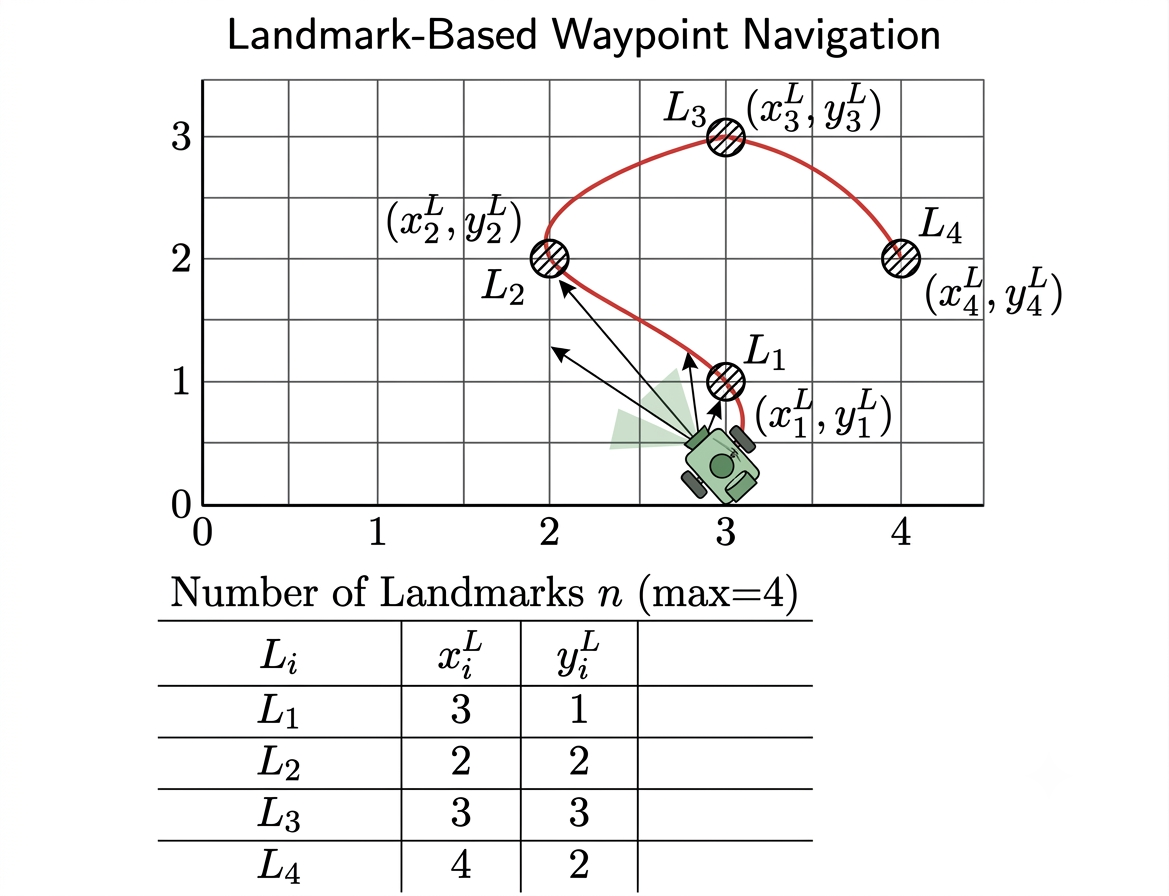

waypoint navigation using landmarks
unique locations, each location must be unique
use QR codes
if the robot sees landmark 2, then it knows that it is at x2, y2
using LIDAR it can figure out how far it is from landmark 2
so it gets a new estimate of position
but say odometry is telling it, it is farther away
trust odometry (which collects error) or landmark (which never moves)?
use alpha beta filter to find an average of both
see interactive webpage here
do not rely too much on landmark or returns from LIDAR
you can put more weight on whichever you trust more

landmarks can help with self-localisation
Concept 🧩 🚀 can do both self-localisation and mapping (using landmarks)
⚠️ but what if landmarks are too far apart? then errors will accumulate.
⚠️landmarks need to be distinct

Image credit: Recreated using Google Gemini based on an image by Dr John Oyekan
LANDMARK RECOGNISER: Processes raw sensory data to identify distinct environmental features and landmarks.
DEAD RECKONER: Uses wheel encoders or similar odometry to estimate the robot’s movement over time.
MAP BUILDER: The central engine that combines features from the landmark recogniser with dead reckoning data to construct and update the MAP.
Evidence-based Localiser: Uses recognised landmarks to accurately calculate and refine the robot’s position.
MAP: The stored spatial data representing the mapped environment.
REACTIVE EXPLORER: Handles immediate motor actions and collision avoidance using direct sensory input.
Deliberate planning: Uses the built map to perform high-level path planning and goal-oriented navigation.

Rviz: 3D robot visualizer for Robot Operating System 2 (ROS 2), used to inspect sensor data, robot models, transform frames (TF), and navigation states in real time
Rviz will show laser returns as dots
convert them to landmarks
reactive controller controls robot controller
odometry allows you to do self-localisation
use sensor data and create map
use landmarks to correct and build map
building a robotic tour guide (in Legoland wonderland)
landmarks locations known and do not move
💡if you encounter a landmark that you know in your database, use probability and generate a hypothesis
💡this is the basic idea behind a particle filter
Concept 🧩 🚀 what is the probability that you are close to this landmark given that you are close to origin and odometry tells you a reading


which is the closest landmark given that you were at origin and odometry says you have gone 2.5 units?
⚠️ but what if landmarks are too far apart? then errors will accumulate.
⚠️landmarks need to be distinct

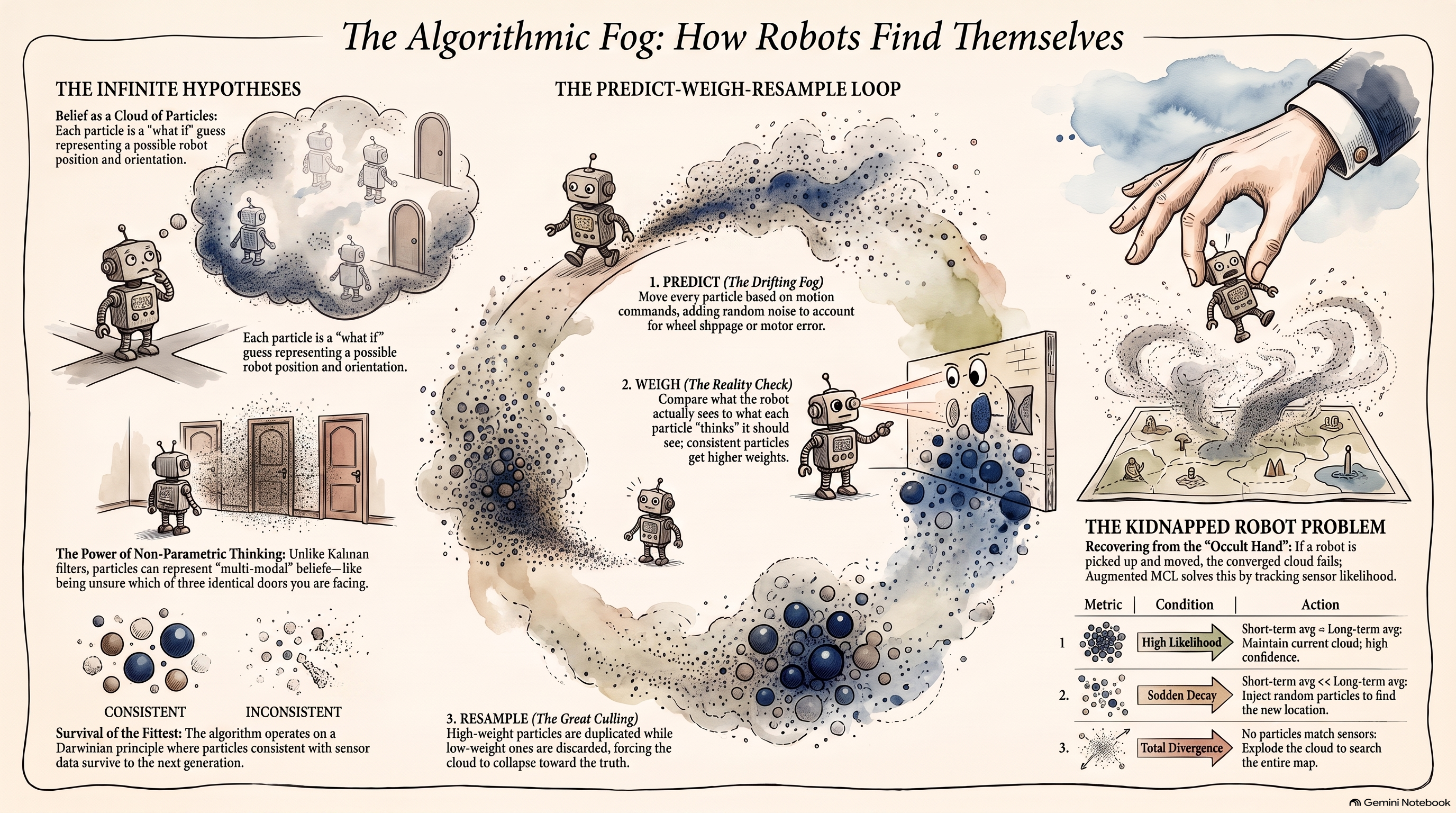

generate hypotheses and test hypotheses using sensors
distribute particles
generate a hypothesis based on the mathematical model of the robot
the mathematical model will change based on whether you have a humanoid robot or dog robot or wheeled robot
for example, if it is a wheeled robot it will use odometry to figure out where it thinks is (see example in previous section and figure)
constantly resample
over time you will get a better estimate of pose

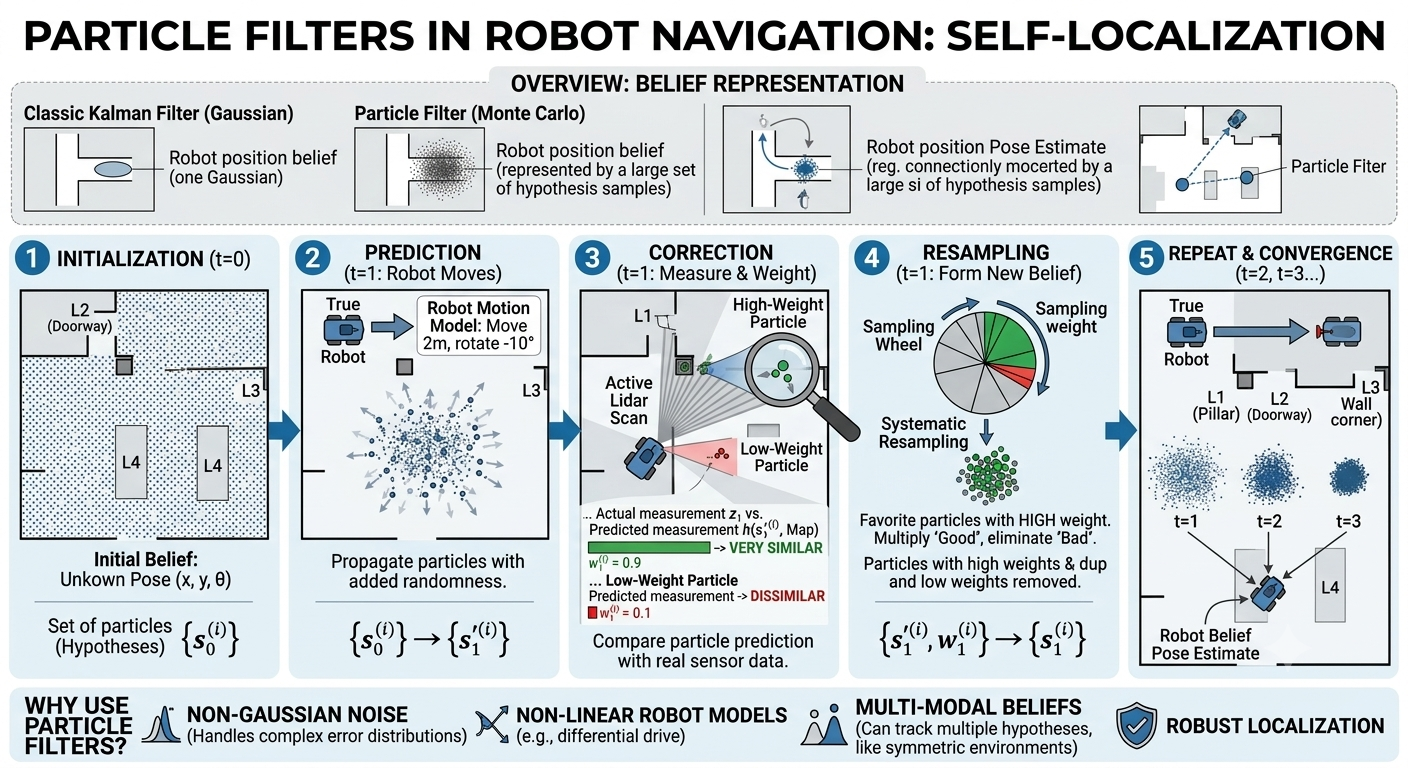

particles generated
Initialization: The robot starts with no prior knowledge, so it scatters potential positions (particles) uniformly across the map.
Prediction: As the robot moves, it uses its motion model, combined with added random noise to account for uncertainty, to propagate all particles.
Correction: The robot takes sensor measurements (e.g., via Lidar). Each particle predicts what it would measure. Particles whose predictions closely match the actual measurements are given a high “importance weight.”
Resampling: A new set of particles is formed, favouring those with high weights. This effectively eliminates unlikely hypotheses and duplicates the most plausible ones
Convergence: The process repeats, and over multiple cycles, the cloud of particles converges on the robot’s actual pose.


🤔 ❓do you have a particle filter in your brain?
you are in a room and you lose the power and lights. how would you navigate?
you generate hypotheses, you start feeling, probing, feel the edge of the bed
generate hypotheses, get data and test these hypotheses
and you self-localize
Concept 🧩 🚀 The geometry of the environment becomes features that the particle filter will use
resamples, anything that is below a threshold it fires it back into the environment and then says go back, and it keeps testing them
you can try developing your own variant of a particle filter
Artificial potential field is a method for path planning
But you need a map
use odometry and self localization to build a map
NAVIGATION2/NAV2LIDAR node also created
EKF is Extended Kalman Filter (similar to Alpha Beta Filter)
ultrasound? seabed
particle filter?
look at where sun is (if you have a clock)
at night look at North Star 💫 (if not ☁️ cloudy)
🧭 compass
clock (sun), compass, weather, underwater features, celestial navigation

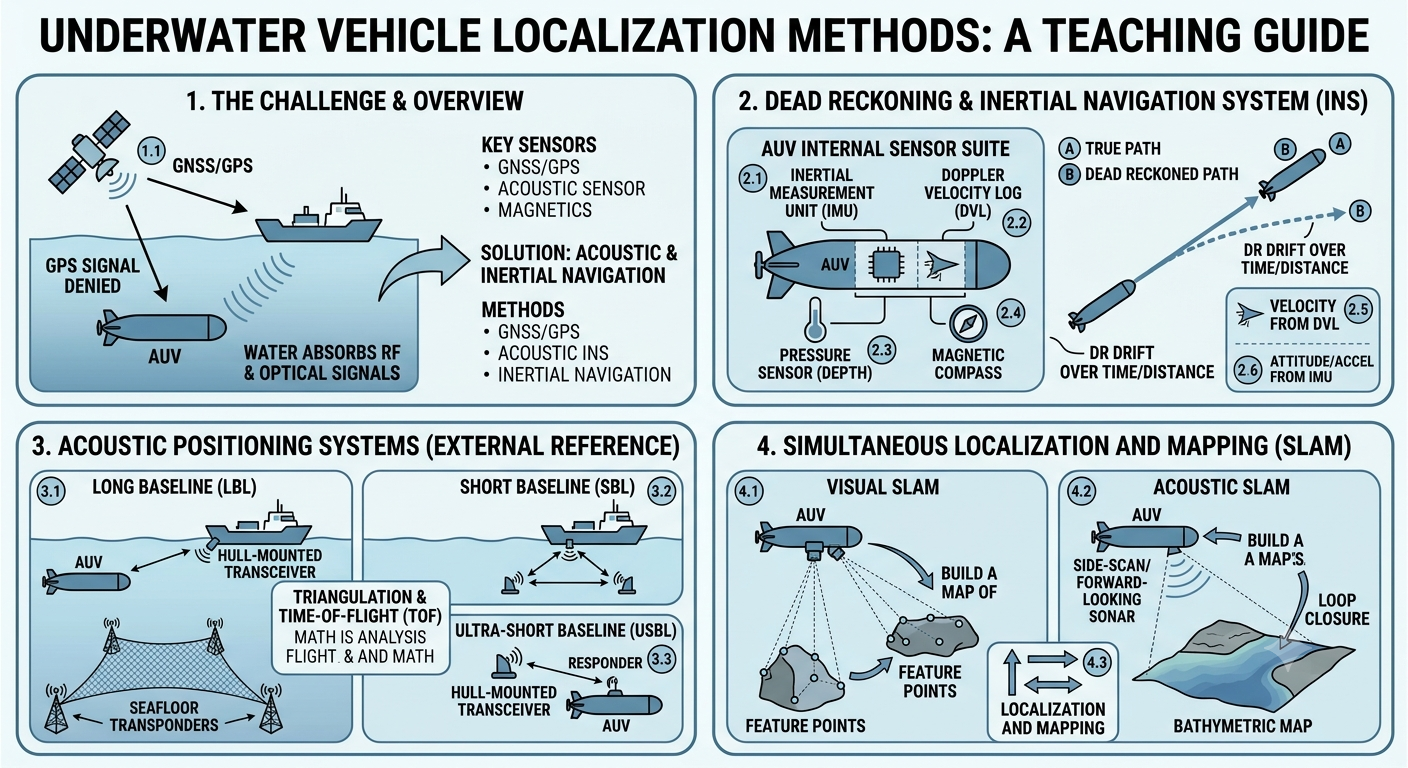

underwater autonomous mapping, drill through ice, collect data on ecosystems
how do you solve this problem?
rely on IMU (essentially gives you odometry)
once you get further and further away, there will be drift
sonic/acoustic signals localize underwater

Terrestrial Vehicles (e.g., Cruise AV): Utilize LiDAR (3D point clouds), optical cameras (RGB/depth), millimeter-wave Radar, inertial measurement units (IMUs), wheel encoders, and GNSS/GPS.
Underwater/Sub-Ice Vehicles (AUVs): Rely primarily on acoustic sensors (Doppler Velocity Log (DVL), multibeam sonar, side-scan sonar), pressure/depth sensors, fiber-optic gyroscopes (IMU/FOG), and acoustic positioning systems (USBL/LBL), as GPS signals cannot penetrate water.
Concept 🧩 🚀 Raw sensor outputs are fused (sensor fusion) using probabilistic algorithms such as Extended Kalman Filters (EKF)
Point-Cloud / Grid Mapping: LiDAR or Sonar returns are converted into occupancy grid maps or 3D point cloud maps.
Visual Landmarks: Keypoint detection algorithms identify distinct visual markers in camera feeds to establish spatial correspondences.
Feature-Sparse & Dynamic Surroundings: Sea ice bottoms and open water columns often lack sharp visual or bathymetric features, making loop closure and scan matching difficult.
Dynamic Agents: Navigating alongside unpredictably moving traffic, pedestrians, and cyclists requires real-time segmentation of static map elements versus dynamic obstacles.
Multipath Signals & Urban Canyons: High-rise structures block or reflect GNSS/GPS signals, forcing systems to rely heavily on LiDAR and pre-built High-Definition (HD) maps.
Weather & Lighting Fluctuations: Heavy rain, snow, fog, and sun glare interfere with camera and LiDAR performance.

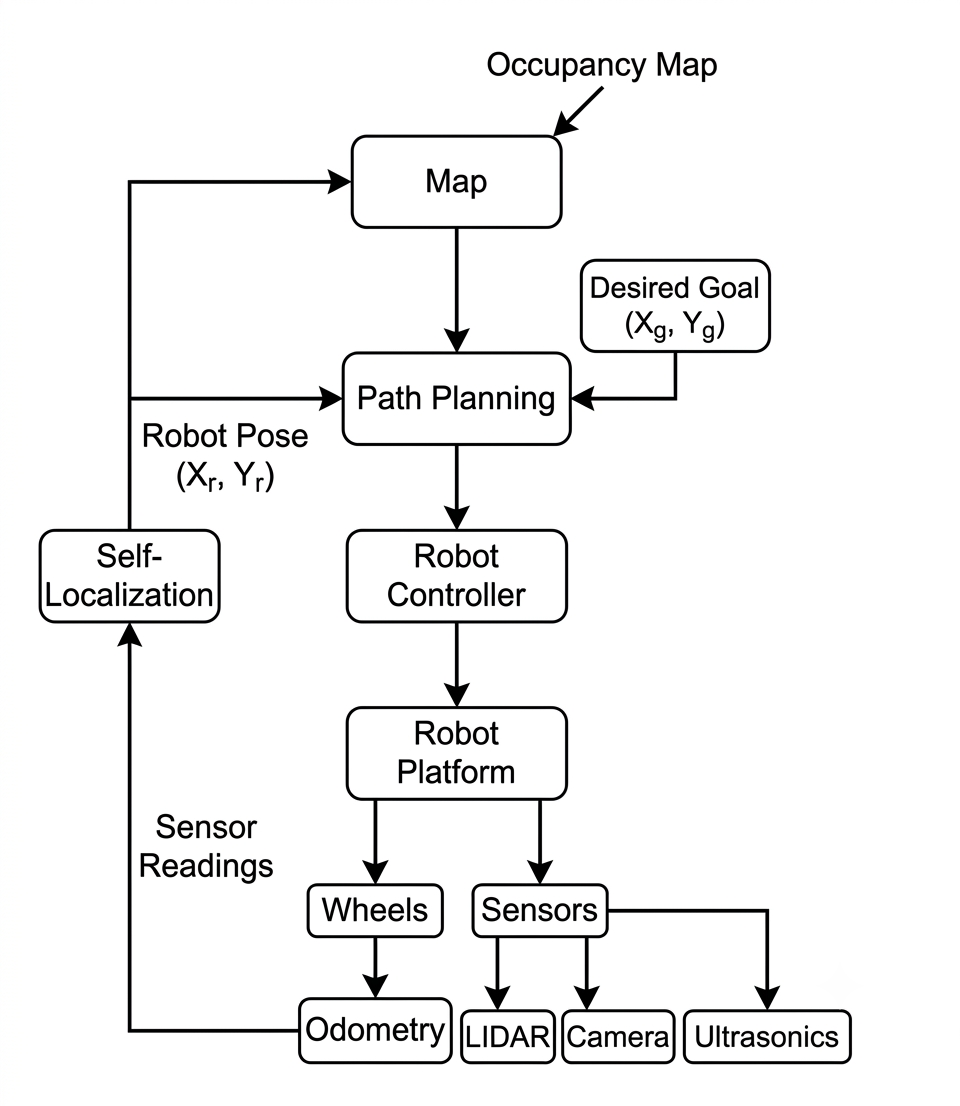

robot controller uses a reactive explorer and dead reckoning
this controls the robot platform
this controls the wheels
this gives you odometry
you have sensors (LIDAR, camera, ultrasonics) which you can use to develop a map
use odometry to self-localise and build a map
you can use landmarks to self-localise and build a map

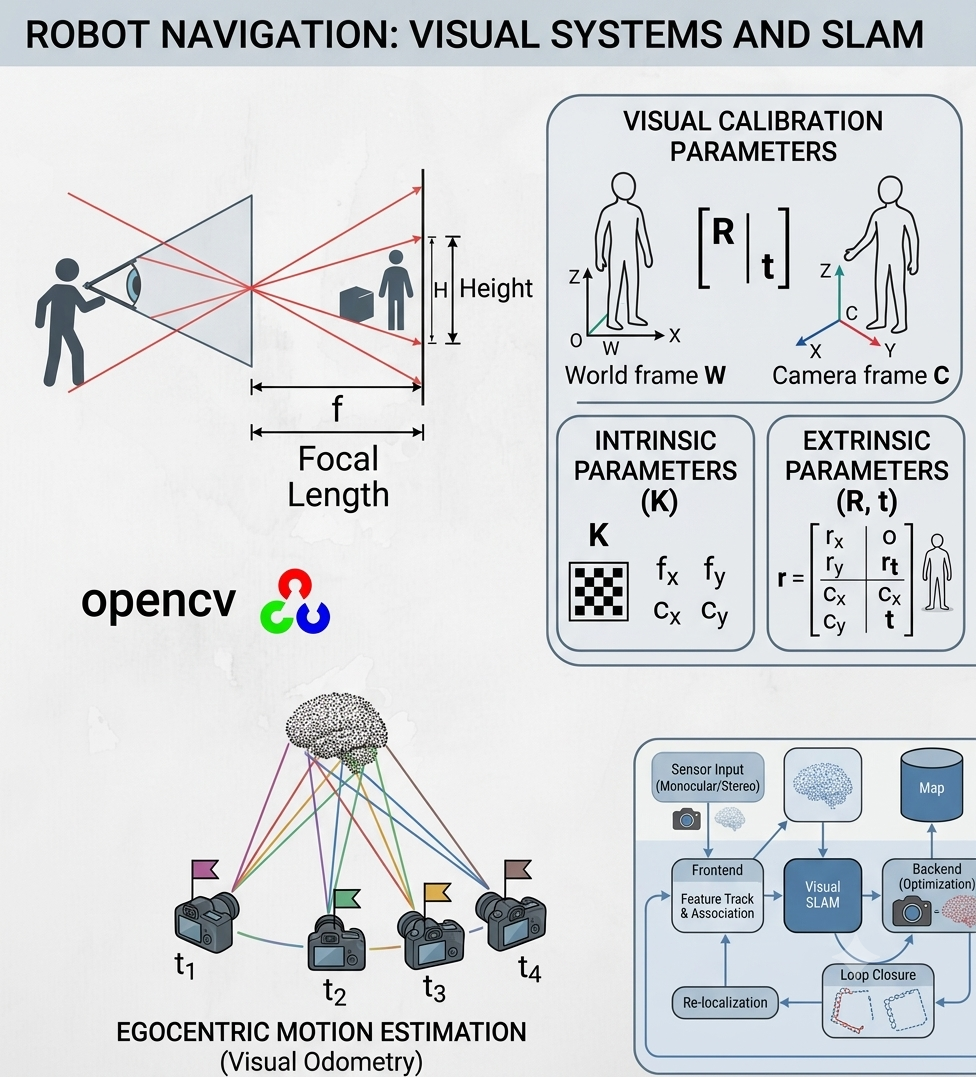

egocentric view
look at same object from different points of view

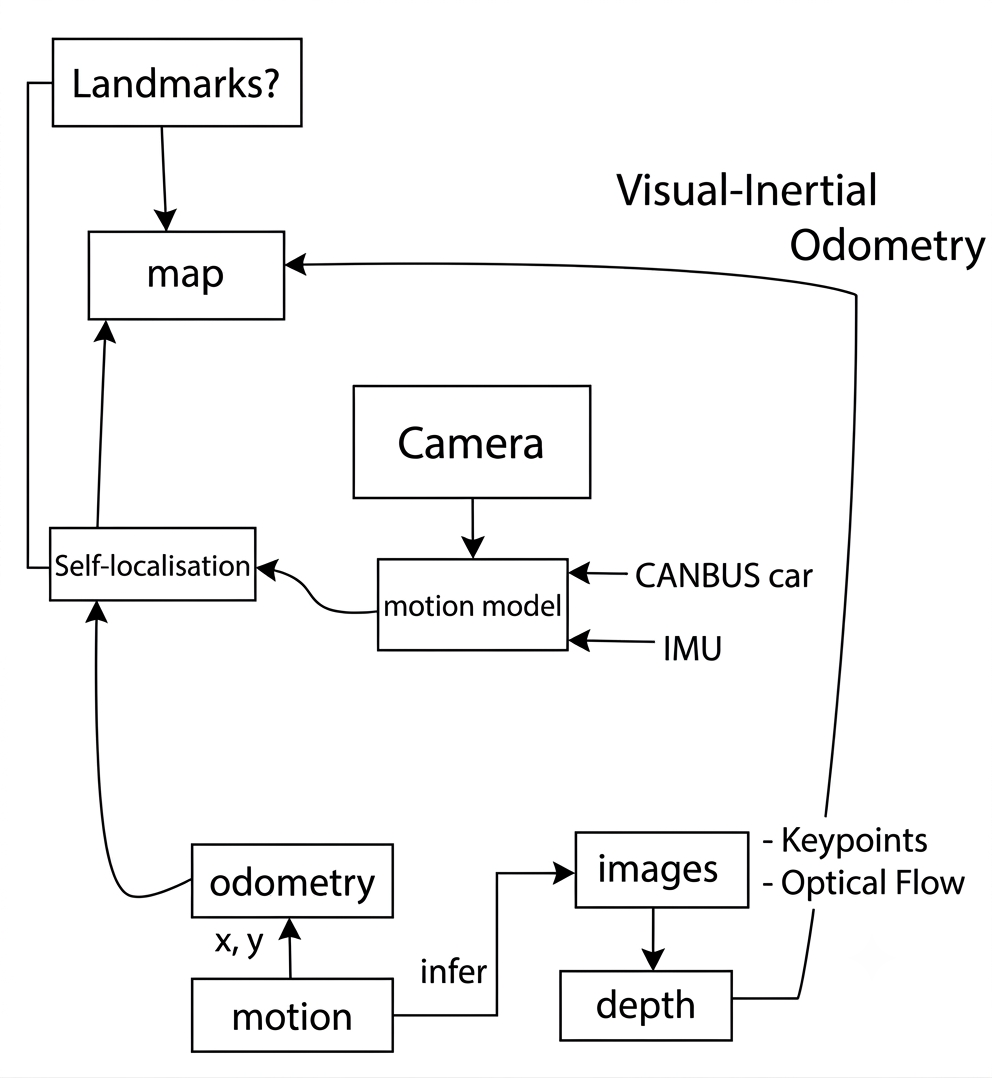

visual odometry

AR codes
Detect features like corners
Look at same object from different frames and infer
motion of object (while tracking AR code)
detect features on objects (such as edges/corners)
track the corner of the tree, and we can extract a patch
similar to augmented reality where you are (say) visualizing a dinosaur from different directions as you move around the room
Concept 🧩 🚀 the patch becomes the landmark
if you can then find the x, y co-ordinate of the landmark you can then refer it to navigate
you can then self-localize

monocular SLAM (one camera system)
with binocular system, you can use disparity between two images to get depth of objects

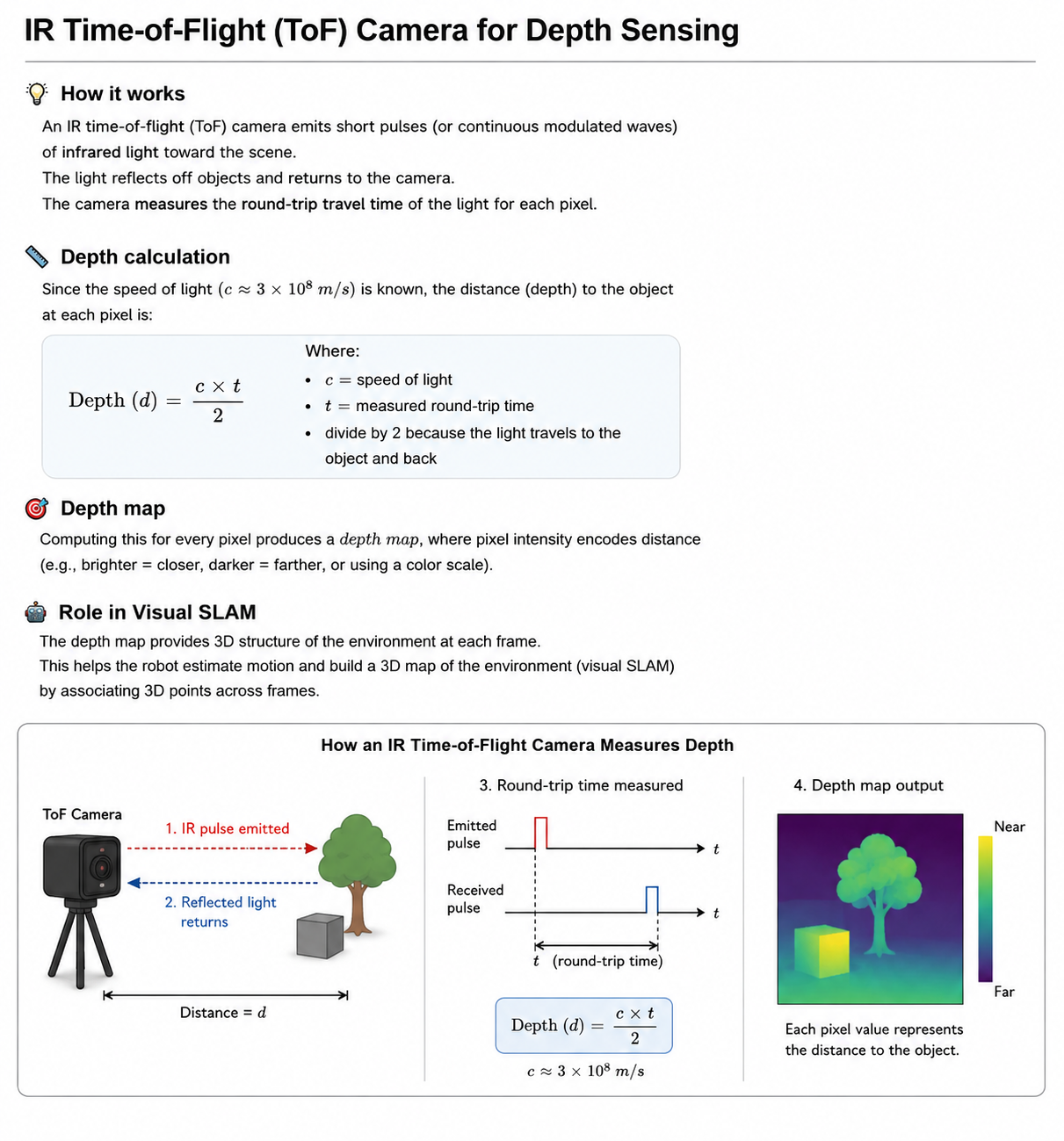

IR camera
An IR time-of-flight (ToF) camera emits infrared light and measures how long it takes for the light to travel to an object and back to the sensor. Since light travels at a known speed, the measured travel time gives the distance:
Depth = (speed of light × round-trip time) / 2
The camera therefore produces a depth map, where each pixel contains the distance to the corresponding point in the scene. In visual SLAM, this depth information helps the robot estimate 3D structure and its own position without relying solely on stereo correspondence or monocular scale estimation.

these are called RGBD cameras (D for depth)
IMU has accelerometer and gyroscope
by combining them you can have visual inertial SLAM or visual inertial odometry
distance between two cameras in binocular must be known
opencv
initialization step known target
smooth motion model
feature tracking

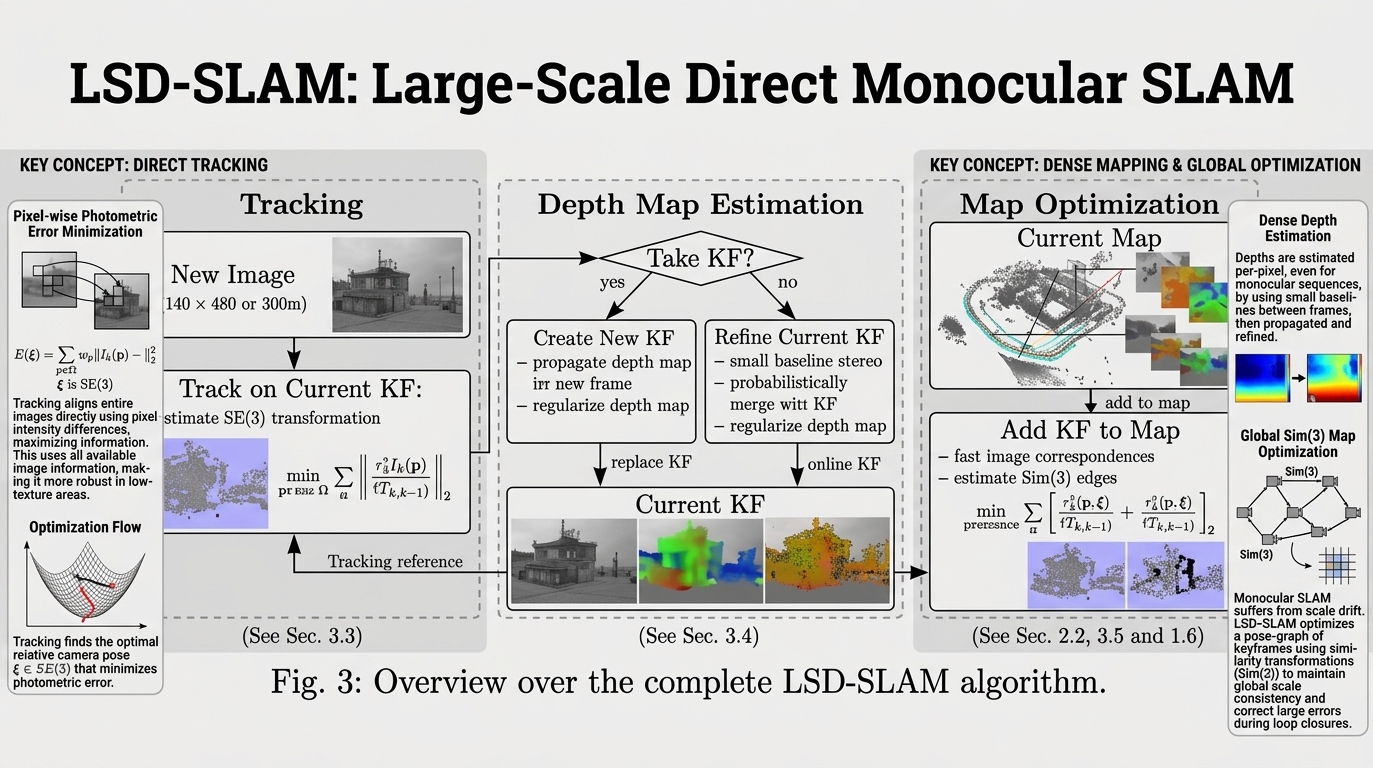

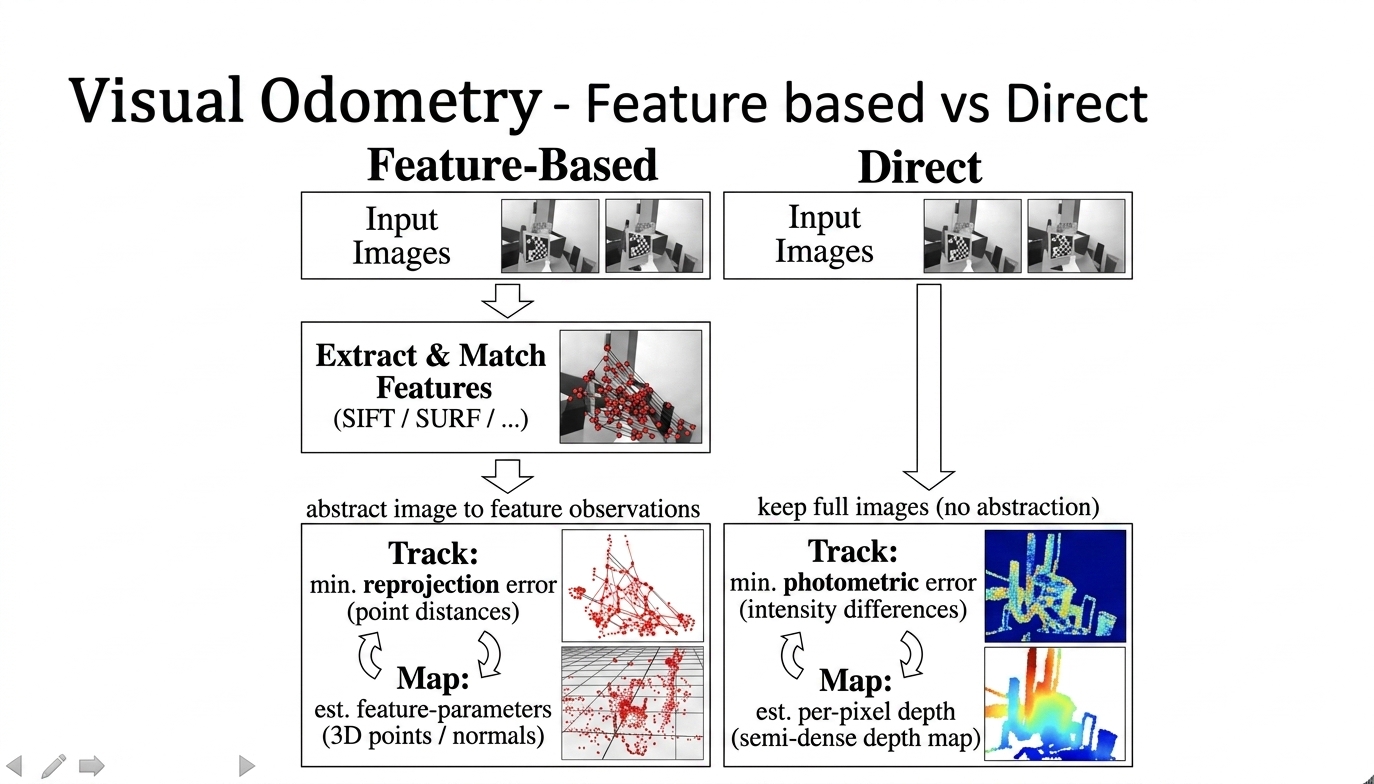

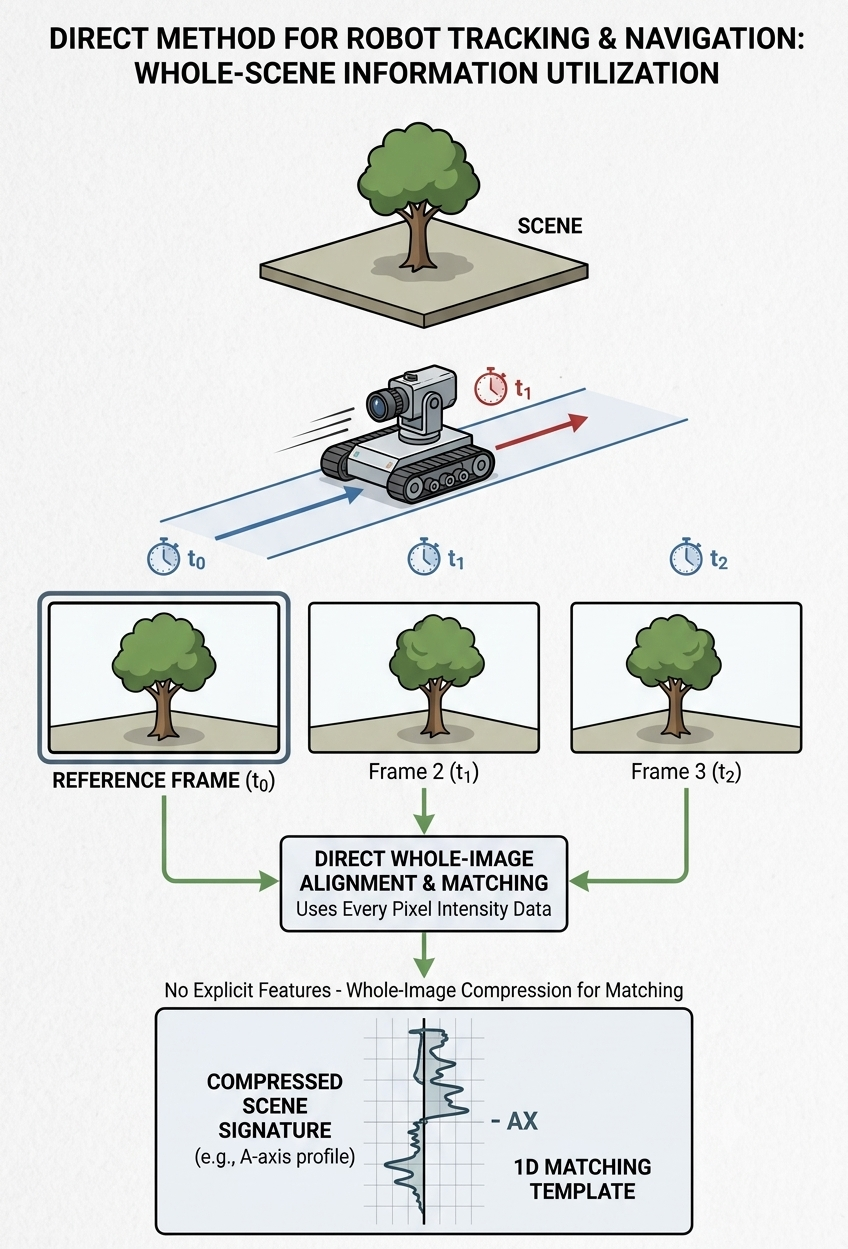

direct method use all information from frame to infer which direction camera is moving and infer odometry


there are different kinds of SLAM that uses direct or indirect method
Recap: visual SLAM builds a map using visual features and self-localizes in the map
by moving the camera, we can detect the depth of objects
you can then project things into the environment (Pokemon)
if features removed, then system will get confused



use landmarks
you track a particular feature and you know that it is (0,0) origin
refine the estimate and correct drift
🤔 ❓what challenges can come up when you are building semi-autonomous robots doing navigation on Mars?
filter based and motion model (Kalman filter)
get better estimate of odometry
STM short term memory
occupancy map in 3D
RTAB-Map (Real-Time Appearance-Based Mapping) is a RGB-D SLAM approach based on a global loop closure detector with real-time constraints.
RTAB-Map combines visual features and depth information for visual SLAM. This package can be used to generate 3D point clouds of the environment and/or to create a 2D occupancy grid map for navigation.
Specifically: When using RGB-D cameras, it uses both color images and depth data to estimate motion and build maps.
When running in stereo or monocular mode, it extracts visual features (commonly SURF, SIFT, ORB, or BRISK) to perform visual odometry and loop closure detection.
In monocular and stereo visual SLAM, SIFT, SURF, ORB, and BRISK are computer vision algorithms used to extract and describe visual features (distinctive points such as corners, edges, or textured blobs) from image frames.
It builds and maintains a graph-based map, where nodes represent keyframes and edges represent estimated transformations between them.
The loop closure detection relies on appearance-based matching — comparing visual features across frames to detect when the robot revisits a known area.


optimisation based approach
filter based approach (Kalman filters, extended Kalman filters)

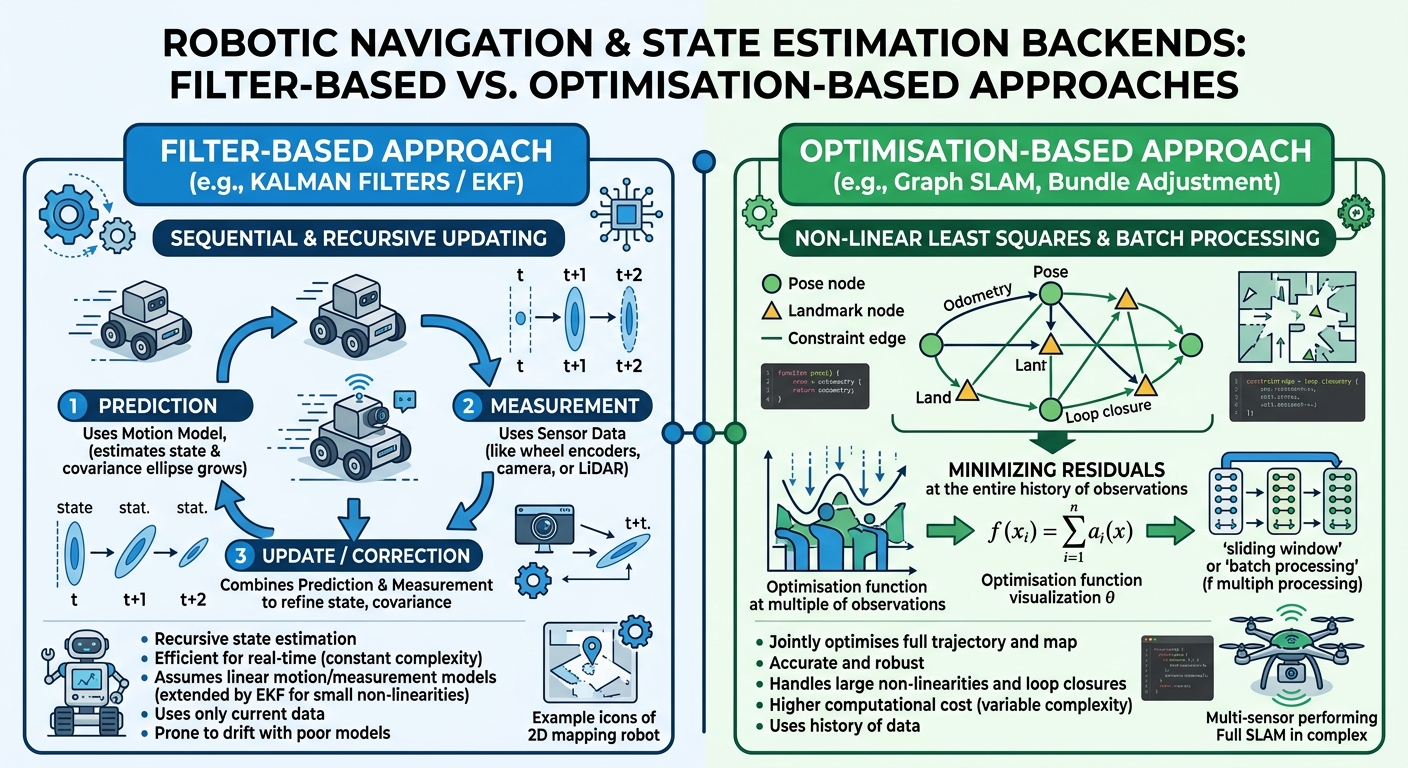

filter based vs optimisation based (see figure below)

odometry sensors to estimate camera motion
constant velocity model: assumes that the camera moves at constant velocity
loop closure detection
backend and frontend and map
Discuss the following with your peers (class discussion)
Stella-VSLAM uses feature-based visual odometry and mapping.
Specifically: It extracts ORB features (Oriented FAST and Rotated BRIEF descriptors) from images.
It matches these features between consecutive frames to estimate camera motion.
It triangulates 3D points from matched features to build a map.
Implication Because of this:
Richly textured scenes (office spaces, outdoor environments, structured rooms) work best.
